The Adesso NuScan 2500TU is compatible with a wide range of 1D and 2D barcode symbologies. The NuScan 2500TU is completely plug and play, making it extremely reliable. This makes it ideal in many different applications. The scanner is also made with antimicrobial substances which helps keep away germs and viruses. The spillproof feature also ensures that fluids from accidental spills won’t stay inside the device. With extra protective design such as the drop protection, the device is less likely to become damaged from accidental drops. Last but not least, compatible with major 2D barcodes (PDF 417, QR Codes, Micro QR Codes, and Data Matrix), and with 1D barcodes like UPC-A, Code 39, Code 128, and more), the NuScan 2500TU is great for your scanning needs.
2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, QR Code, and Data Matrix as well as common 1D barcodes such as Code 128, EAN8/13, ISSN, ISBN, UPC-A/E, Code 25 (ITF/Matrix/Industrial/Standard), ITF 6/14, Code 39, Code 39 Full ASCII, Codabar, Code 93, Code 11, Plessy, MSI Plessy, GS1 DataBars (Omnidirectional, Stacked Omnidirectional, Expanded, Expanded Stacked, Stacked, Limited, Truncated).
Antimicrobial
The scanner is made with antimicrobial substances to keep away germs and viruses. With regular cleaning, the scanner will undoubtedly maintain your environmental hygiene.
Spill Resistant
The scanner’s spill resistant design helps to prevent fluids from staying inside, which would otherwise cause damage to the scanner.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 5 inches per second, offering fast and accurate scanning results.

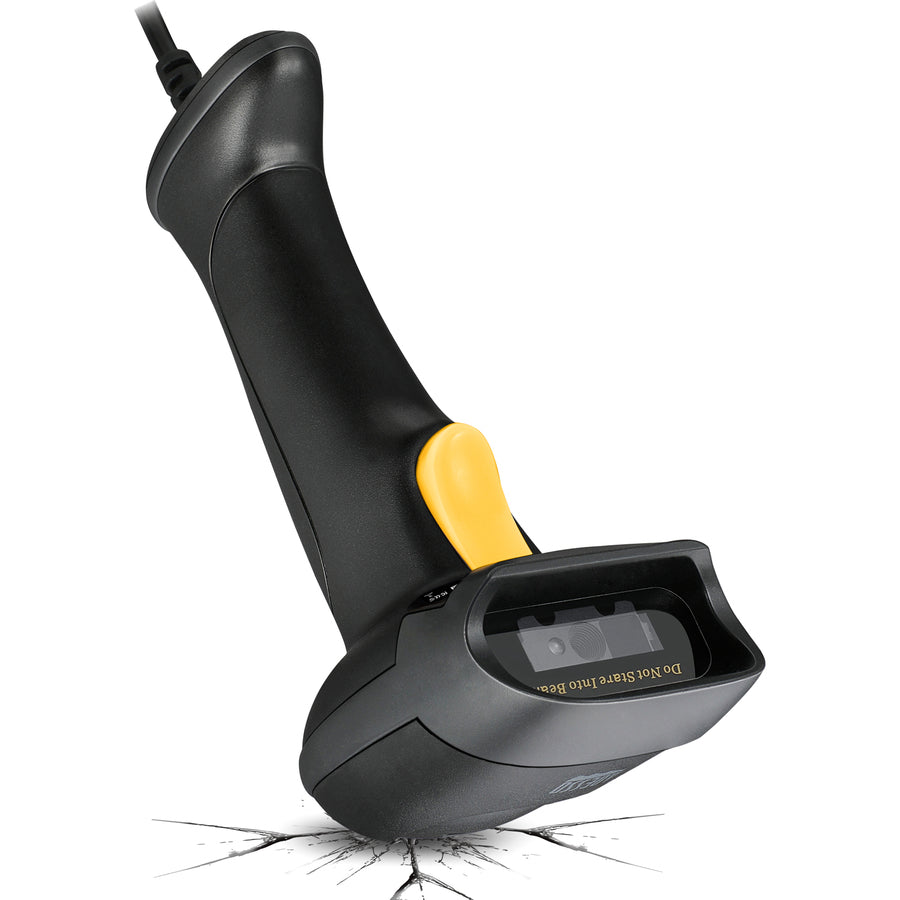

Drop Protection
With its drop protection design, the NuScan 2500TU less likely to become damaged due to accidental drops.
Long Scanning Range
The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan depth.
| Specifications: | |
| Mechanical: | |
| Dimensions (L x W x H): | 6.75 (L) x 3.7 (W) x 2.7 (H) in. (172 x 94 x 68 mm) |
| Weight | 0.38 lbs (174g cable excluded) |
| Cable Length: | 5’ (1.5meters) |
| Electrical: | |
| Power Input voltage: | 3.3 ± 5% VDC |
| Working Current: | 132 ± 13mA (at maximum) |
| Light Source: | 650 ± 10 nm visible red LED |
| Performance: | |
| Interface: | USB |
| Sensor: | CMOS Sensor |
| Minimum Bar Width (1D): | 5 mil/0.127 mm @ PCS 90%, Code 39 |
| Minimum Bar Width (2D): | 10 mil/0.254 mm @ PCS 80%, Data Matrix. |
| Depth of Field: | 0-12 inches (@20mil EAN-13, PC 100%) |
| Motion Tolerance: | 5 inches per second (IPS) |
| Scan Angle | Roll: ±360°, Pitch: ±45°, Yaw: ±40° |
| Print Contrast:: | PCS 30% EAN13 @10mil |
| Alert Operation: | LED light indicator and beeper |
| Environmental | |
| Operating Temperature: | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature: | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity : | 20% ~ 95% (non-condensing) |
| Storage Humidity : | 5% to 95% (non-condensing) |
| Shock Resistance: | Withstanding 1.5m freefall drops |
| Regulatory | FCC, CE RoHS |
System Requirements:
- Windows®2000 / XP / Vista / 7 / 8 / 10
- Mac® OS X
- Interface: USB
Includes:
- Adesso NuScan 2500TU – Spill Resistant Antimicrobial 2D Barcode Scanner
- Quick Start Guide
