CyberPower OR500LCDRM1U Smart App LCD UPS Systems - 500VA/300W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets

Name: CyberPower OR500LCDRM1U Smart App LCD UPS Systems - 500VA/300W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets
Brand: SpadezStore
SKU: SSCYU09105
Price: 219.95 USD
Availability: InStock

Shipping calculated at checkout.

Acquire Points: 219

Quantity

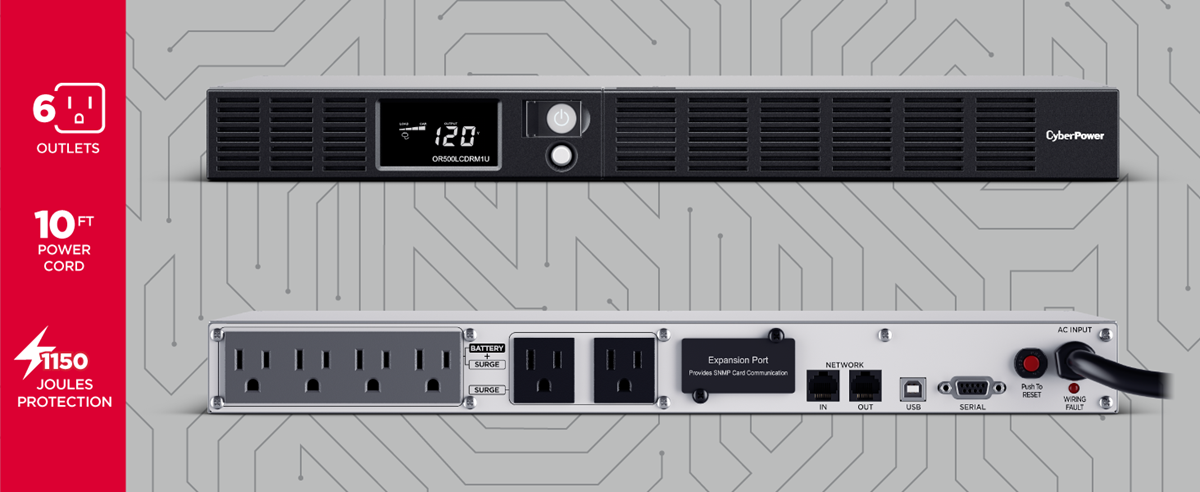

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

Features

Capacity: 500VA / 300W
Topology: Line Interactive
Waveform: Simulated Sine Wave
Output: 120Vac ± 10%
Plug type & cord: NEMA 5-15P, 10 ft. cord
Outlet types: 6 × NEMA 5-15R
Communication: USB, Relay, SNMP
Management software: PowerPanel® Business
Remote management: Yes, with optional RMCARD205
ENERGY STAR® certified: Yes

Why Do You Need a UPS System?

Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.

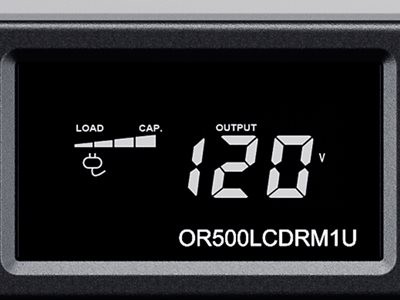

Multifunction LCD Screen

Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

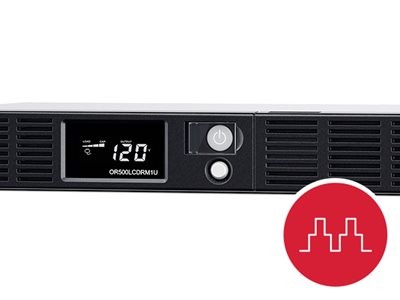

Simulated Sine Wave Output

Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.

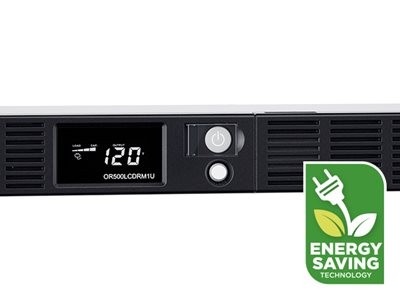

GreenPower UPS Bypass Design

Allows utility power to bypass the UPS transformer, when AC Power is stable, which reduces energy consumption, noise, and heat buildup.

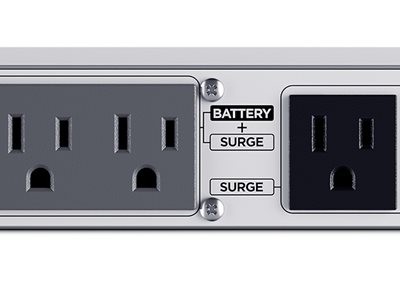

Battery & Surge Protected Outlets

This unit is equipped with (4) surge and battery protected outlets and (2) surge protected outlets to keep your equipment protected from power surges and spikes.

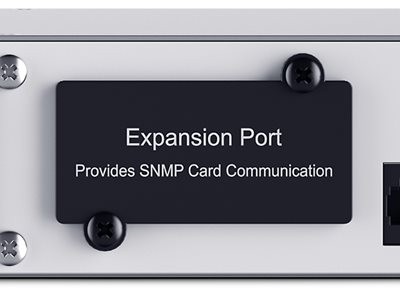

Expansion Port for Optional Remote Management

The optional RMCARD205 allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).

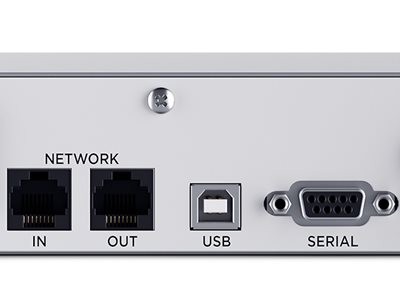

Data Line Protection

Prevents power surges that travel through Ethernet lines from causing damage to electronics.

Workstations

Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.

Telecom/VoIP

Keep smart devices connected and running during power outages and brownouts.

Corporate & Department Servers

Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.

Product Q&A

How long will the UPS power my systems after the power goes out?

Run times vary based on the power required by connected devices. This system is estimated run for 12 minutes at half load, 3 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.

Can this UPS model be monitored over a network?

The OR500LCDRM1U can be monitored over a network with the addition of the RMCARD205. It also comes with a free download of PowerPanel Business that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

Can the batteries on this UPS be replaced?

Yes, this unit can have the batteries replaced. The replacement battery cartridge is the CyberPower RB0670X2.

Does this come with rackmount hardware?

Yes, all CyberPower rackmount units come with the necessary hardware to mount the UPS. However, the unit does not have to be mounted to work. It can operate in any well-ventilated environment within 32 °F to 104 °F (0 °C to 40 °C).

How do I mute the alarms?

Press and hold the menu button for three seconds to mute the alarm. Repeat this step to enable the alarms.

Controls/IndicatorsStatus Indicators

On Unit:

Power On
Wiring Fault

LCD Panel:

Input Voltage
Output Voltage
Battery Capacity
Load Level
Runtime
On Battery
Overload
Silent Mode

Interfaces/PortsSerial PortYesUSB (HID Compliant) PortYesManagementAlarmOverloadOn BatteryBattery ModeWarrantyAdditional Warranty Information

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

Limited Warranty3 YearDirectly Connected Equipment Guarantee$300000 LifetimeEnvironmental ConditionsMaximum Operating Temperature104°F (40°C)Maximum Operating Elevation10000 ftMaximum Storage Elevation60"Storage Relative Humidity0% - 95%Storage Temperature5°F (-15°C) - 113°F (45°C)MiscellaneousAdditional Information

Replacement Battery Cartridge Quantity: 1
Adjustable Voltage Range: 88 - 144 VAC
Circuit Breaker: 15A
Plug Style: Straight
Automatic Voltage Regulation: Single Boost
On Battery Frequency: 60 Hz ± 1%
On Battery Voltage: 120 VAC ± 10%
Output Power Factor: 0.6
Overload Protection: Internal Circuitry Limiting
Network Protection RJ45: 1-in / 1-Out (10/100/1000)
LCD: Multifunction LCD
Management Cable: USB Cable
SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
Material of Construction: Metal
Operating Relative Humidity: 0 - 95 % (non-condensing)
Operating Temperature: 32 - 104 °F (0 - 40 °C)

Package Contents

Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
Rack Ears (2)
User Manual
Power Management Software
Warranty Card
Serial Cable
Phone Cable
USB Cable

Software IncludedPowerPanel® BusinessCertifications & Standards

FCC Class B
cUL 107.1
UL 1778

Controls/Indicators
Status Indicators	On Unit: Power On Wiring Fault LCD Panel: Input Voltage Output Voltage Battery Capacity Load Level Runtime On Battery Overload Silent Mode
Interfaces/Ports
Serial Port	Yes
USB (HID Compliant) Port	Yes
Management
Alarm	Overload
	On Battery
	Battery Mode
Warranty
Additional Warranty Information	CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
Limited Warranty	3 Year
Directly Connected Equipment Guarantee	$300000 Lifetime
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	60"
Storage Relative Humidity	0% - 95%
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Miscellaneous
Additional Information	Replacement Battery Cartridge Quantity: 1 Adjustable Voltage Range: 88 - 144 VAC Circuit Breaker: 15A Plug Style: Straight Automatic Voltage Regulation: Single Boost On Battery Frequency: 60 Hz ± 1% On Battery Voltage: 120 VAC ± 10% Output Power Factor: 0.6 Overload Protection: Internal Circuitry Limiting Network Protection RJ45: 1-in / 1-Out (10/100/1000) LCD: Multifunction LCD Management Cable: USB Cable SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205 Material of Construction: Metal Operating Relative Humidity: 0 - 95 % (non-condensing) Operating Temperature: 32 - 104 °F (0 - 40 °C)
Package Contents	Smart App Intelligent LCD OR500LCDRM1U 500VA UPS Rack Ears (2) User Manual Power Management Software Warranty Card Serial Cable Phone Cable USB Cable
Software Included	PowerPanel® Business
Certifications & Standards	FCC Class B cUL 107.1 UL 1778
Country of Origin	Philippines
Environmentally Friendly	Yes
Energy Star	Yes
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Surge Energy Rating	1150 J
Waveform Type	Simulated Sine Wave
Input Voltage Range	90 V AC - 140 V AC
Input Frequency	63 Hz
Load Capacity (VA)	500 VA
General Information
Product Type	Line-interactive UPS
Manufacturer Part Number	OR500LCDRM1U
Manufacturer Website Address	https://www.cyberpowersystems.com/
Manufacturer	CyberPower Systems, Inc
Product Model	OR500LCDRM1U
Product Name	Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
Product Series	Smart App LCD UPS
Brand Name	CyberPower
Physical Characteristics
Weight (Approximate)	18 lb
Form Factor	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17.1"
Depth	9.3"
Product Color	Black
Color Family	Black

Battery Information
Battery Chemistry	Lead Acid
Battery Size	6V
Battery Capacity	7000 mAh
Number of Batteries	2
Backup/Run Time (Half Load)	12 Minute
Backup/Run Time (Full Load)	3 Minute
Battery Characteristics	Maintenance-free
Replaceable Battery	Yes
Typical Battery Recharge Time	8 Hour
Technical Information
Application/Usage	Server
	Network Device
	Telecommunication
	Workstation
Dataline Protection	RJ-11
	RJ-45
Overload Protection	Yes
Protection Type	Sag
	AC Surge
	Dataline Surge
	Black Out
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
EMI/RFI Noise Filter	Yes
AVR	Yes
Energy Saving	GreenPower UPS™ Bypass Technology
Number of Battery & Surge Outlets	4
Number of Surge-only Outlets	2
Transfer Time	8 ms
Receptacle Detail	6 x NEMA 5-15R
